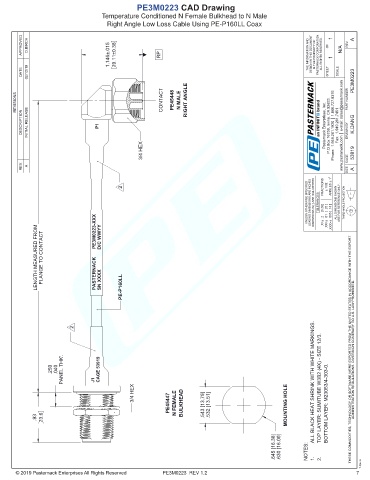

PE3M0223 CAD Drawing
Temperature Conditioned N Female Bulkhead to N Male
Right Angle Low Loss Cable Using PE-P160LL Coax

APPROVED D.BIRCH 1.146±.015 29.11±0.38 RP THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 02/12/19 SHEET OF SCALE PE3M0223

REVISIONS CONTACT PE45448 N MALE RIGHT ANGLE PART NUMBER

DESCRIPTION INITIAL RELEASE P1 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

3/4 HEX CAGE 53919

REV. A SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .X=± .01 [ .25 ] .XX=± .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION
2 FRACTIONS ± 1/32 ANGLES ± 1°

LENGTH MEASURED FROM FLANGE TO CONTACT PASTERNACK PE3M0223-XXX SN XXXX D/C WWYY PE-P160LL

2

PANEL THK'. THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.250 .040 J1 CAGE 53919

3/4 HEX ALL BLACK HEAT SHRINK WITH WHITE MARKINGS. TOP LAYER: SUMITUBE W3B2 (4X) - SIZE 12/3.

PE45447 N FEMALE BULKHEAD .543 [13.79] .532 [13.51] MOUNTING HOLE BOTTOM LAYER: M23053/4-303-0.
.93 23.6

-
Pasternack does not make
.645 [16.38] .630 [16.00] NOTES:
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

2.
1.
T-Rev.A
PE3M0223 REV 1.2 7
