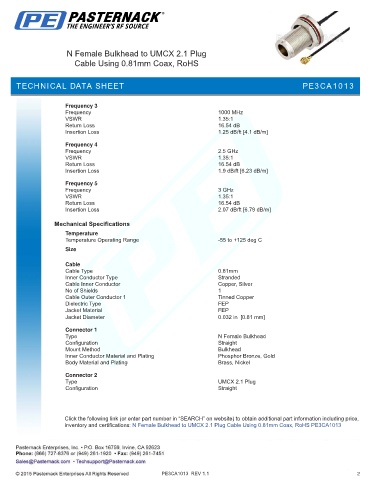

N Female Bulkhead to UMCX 2.1 Plug
Cable Using 0.81mm Coax, RoHS

TECHNICAL D PE3CA1013
TECHNICAL DATA SHEETATA SHEET

Frequency 3
Frequency 1000 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.25 dB/ft [4.1 dB/m]

Frequency 4
Frequency 2.5 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.9 dB/ft [6.23 dB/m]

Frequency 5
Frequency 3 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 2.07 dB/ft [6.79 dB/m]

Mechanical Specifications
Temperature
Temperature Operating Range -55 to +125 deg C
Size
.
Cable
Cable Type 0.81mm
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Silver
No of Shields 1
Cable Outer Conductor 1 Tinned Copper
Dielectric Type FEP
Jacket Material FEP
Jacket Diameter 0.032 in [0.81 mm]
Connector 1
Type N Female Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel

Connector 2
Type UMCX 2.1 Plug
Configuration Straight

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to UMCX 2.1 Plug Cable Using 0.81mm Coax, RoHS PE3CA1013

PE3CA1013 REV 1.1 2
