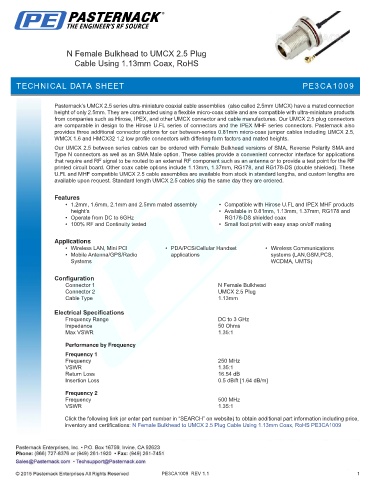

N Female Bulkhead to UMCX 2.5 Plug
Cable Using 1.13mm Coax, RoHS

TECHNICAL D PE3CA1009
TECHNICAL DATA SHEETATA SHEET

Pasternack’s UMCX 2.5 series ultra-miniature coaxial cable assemblies (also called 2.5mm UMCX) have a mated connection
height of only 2.5mm. They are constructed using a flexible micro-coax cable and are compatible with ultra-miniature products
from companies such as Hirose, IPEX, and other UMCX connector and cable manufactures. Our UMCX 2.5 plug connectors
are comparable in design to the Hirose U.FL series of connectors and the IPEX MHF series connectors. Pasternack also
provides three additional connector options for our between-series 0.81mm micro-coax jumper cables including UMCX 2.5,
WMCX 1.6 and HMCX32 1.2 low profile connectors with differing form factors and mated heights.
Our UMCX 2.5 between series cables can be ordered with Female Bulkhead versions of SMA, Reverse Polarity SMA and
Type N connectors as well as an SMA Male option. These cables provide a convenient connector interface for applications
that require and RF signal to be routed to an external RF component such as an antenna or to provide a test point for the RF
printed circuit board. Other coax cable options include 1.13mm, 1.37mm, RG178, and RG178-DS (double shielded). These
U.FL and MHF compatible UMCX 2.5 cable assemblies are available from stock in standard lengths, and custom lengths are
available upon request. Standard length UMCX 2.5 cables ship the same day they are ordered.

Features
• 1.2mm, 1.6mm, 2.1mm and 2.5mm mated assembly • Compatible with Hirose U.FL and IPEX MHF products
height’s • Available in 0.81mm, 1.13mm, 1.37mm, RG178 and
• Operate from DC to 6GHz RG178-DS shielded coax
• 100% RF and Continuity tested • Small foot print with easy snap on/off mating

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems (LAN,GSM,PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 N Female Bulkhead
Connector 2 UMCX 2.5 Plug
Cable Type 1.13mm

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Max VSWR 1.35:1
Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 0.5 dB/ft [1.64 dB/m]
Frequency 2
Frequency 500 MHz
VSWR 1.35:1

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.13mm Coax, RoHS PE3CA1009

PE3CA1009 REV 1.1 1
