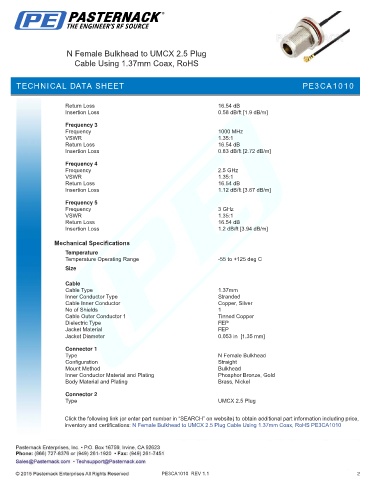

N Female Bulkhead to UMCX 2.5 Plug
Cable Using 1.37mm Coax, RoHS
TECHNICAL D PE3CA1010
TECHNICAL DATA SHEETATA SHEET
Return Loss 16.54 dB
Insertion Loss 0.58 dB/ft [1.9 dB/m]
Frequency 3
Frequency 1000 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 0.83 dB/ft [2.72 dB/m]
Frequency 4
Frequency 2.5 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.12 dB/ft [3.67 dB/m]
Frequency 5
Frequency 3 GHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 1.2 dB/ft [3.94 dB/m]
Mechanical Specifications
Temperature
Temperature Operating Range -55 to +125 deg C
Size
.
Cable
Cable Type 1.37mm
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Silver
No of Shields 1
Cable Outer Conductor 1 Tinned Copper
Dielectric Type FEP
Jacket Material FEP
Jacket Diameter 0.053 in [1.35 mm]
Connector 1
Type N Female Bulkhead
Configuration Straight
Mount Method Bulkhead
Inner Conductor Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nickel
Connector 2
Type UMCX 2.5 Plug
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS PE3CA1010
PE3CA1010 REV 1.1 2
