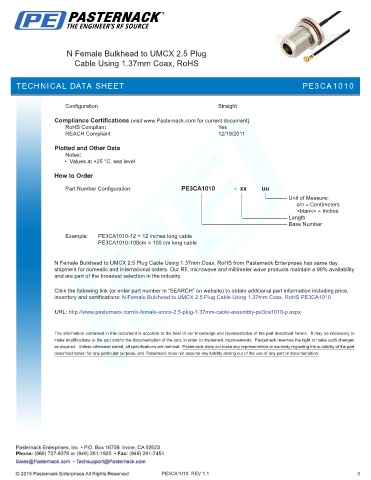

N Female Bulkhead to UMCX 2.5 Plug
Cable Using 1.37mm Coax, RoHS

TECHNICAL D PE3CA1010
TECHNICAL DATA SHEETATA SHEET

Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/19/2011

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

How to Order

Part Number Configuration: PE3CA1010 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number
Example: PE3CA1010-12 = 12 inches long cable
PE3CA1010-100cm = 100 cm long cable

N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS PE3CA1010

URL: http://www.pasternack.com/n-female-umcx-2.5-plug-1.37mm-cable-assembly-pe3ca1010-p.aspx

PE3CA1010 REV 1.1 3
