N Male to TNC Male Cable Using LMR-
400 Coax And Times Connectors

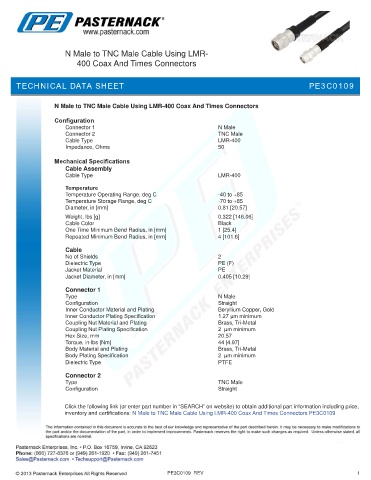

TECHNICAL D PE3C0109
TECHNICAL DATA SHEETATA SHEET

N Male to TNC Male Cable Using LMR-400 Coax And Times Connectors

Configuration
Connector 1 N Male
Connector 2 TNC Male
Cable Type LMR-400
Impedance, Ohms 50
Mechanical Specifications
Cable Assembly
Cable Type LMR-400

Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.81 [20.57]
.
Weight, lbs [g] 0.322 [146.06]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 1 [25.4]
Repeated Minimum Bend Radius, in [mm] 4 [101.6]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.405 [10.29]

Connector 1
Type N Male
Configuration Straight
Inner Conductor Material and Plating Beryllium Copper, Gold
Inner Conductor Plating Specification 1.27 µm minimum
Coupling Nut Material and Plating Brass, Tri-Metal
Coupling Nut Plating Specification 2 µm minimum
Hex Size, mm 20.57
Torque, in-lbs [Nm] 44 [4.97]
Body Material and Plating Brass, Tri-Metal
Body Plating Specification 2 µm minimum
Dielectric Type PTFE

Connector 2
Type TNC Male
Configuration Straight

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using LMR-400 Coax And Times Connectors PE3C0109

PE3C0109 REV 1
