N Male to TNC Male Cable Using LMR-400 Coax

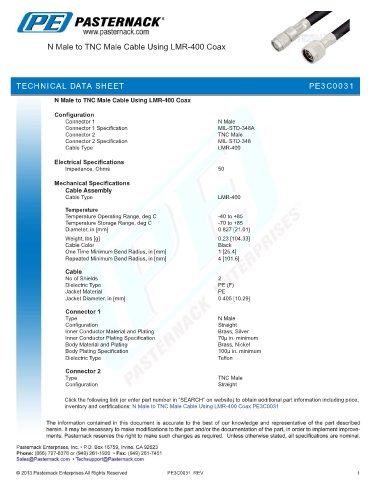

TECHNICAL D PE3C0031
TECHNICAL DATA SHEETATA SHEET

N Male to TNC Male Cable Using LMR-400 Coax

Configuration
Connector 1 N Male
Connector 1 Specification MIL-STD-348A
Connector 2 TNC Male
Connector 2 Specification MIL-STD-348
Cable Type LMR-400

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Cable Assembly
Cable Type LMR-400
Temperature
Temperature Operating Range, deg C -40 to +85
Temperature Storage Range, deg C -70 to +85
Diameter, in [mm] 0.827 [21.01]
.
Weight, lbs [g] 0.23 [104.33]
Cable Color Black
One Time Minimum Bend Radius, in [mm] 1 [25.4]
Repeated Minimum Bend Radius, in [mm] 4 [101.6]

Cable
No of Shields 2
Dielectric Type PE (F)
Jacket Material PE
Jacket Diameter, in [mm] 0.405 [10.29]
Connector 1
Type N Male
Configuration Straight
Inner Conductor Material and Plating Brass, Silver
Inner Conductor Plating Specification 70µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon

Connector 2
Type TNC Male
Configuration Straight

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using LMR-400 Coax PE3C0031

PE3C0031 REV 1
