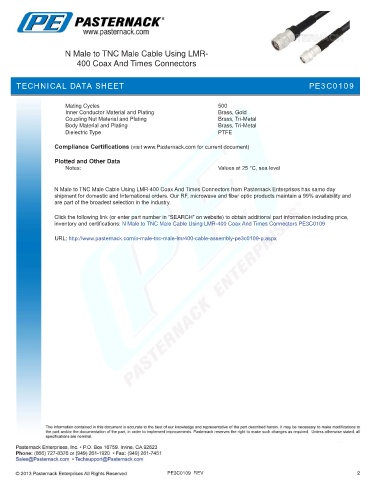

N Male to TNC Male Cable Using LMR-
400 Coax And Times Connectors

TECHNICAL D PE3C0109
TECHNICAL DATA SHEETATA SHEET

Mating Cycles 500
Inner Conductor Material and Plating Brass, Gold
Coupling Nut Material and Plating Brass, Tri-Metal
Body Material and Plating Brass, Tri-Metal
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
Plotted and Other Data
Notes: Values at 25 °C, sea level

N Male to TNC Male Cable Using LMR-400 Coax And Times Connectors from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and
are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male to TNC Male Cable Using LMR-400 Coax And Times Connectors PE3C0109

URL: http://www.pasternack.com/n-male-tnc-male-lmr400-cable-assembly-pe3c0109-p.aspx

PE3C0109 REV 2
