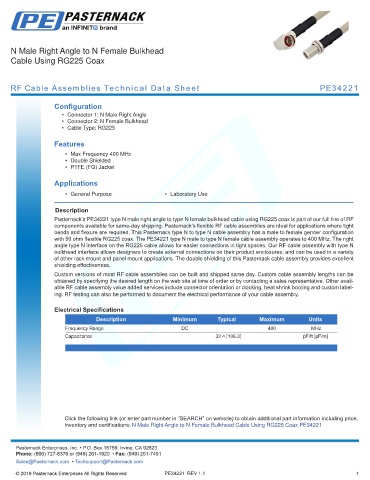

N Male Right Angle to N Female Bulkhead
Cable Using RG225 Coax

RF Cable Assemblies Technical Data Sheet PE34221

Configuration
• Connector 1: N Male Right Angle
• Connector 2: N Female Bulkhead
• Cable Type: RG225

Features
• Max Frequency 400 MHz
• Double Shielded
• PTFE (FG) Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE34221 type N male right angle to type N female bulkhead cable using RG225 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack type N to type N cable assembly has a male to female gender configuration
with 50 ohm flexible RG225 coax. The PE34221 type N male to type N female cable assembly operates to 400 MHz. The right
angle type N interface on the RG225 cable allows for easier connections in tight spaces. Our RF cable assembly with type N
bulkhead interface allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications. The double shielding of this Pasternack cable assembly provides excellent
shielding effectiveness.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 400 MHz
Capacitance 32.4 [106.3] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle to N Female Bulkhead Cable Using RG225 Coax PE34221
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
