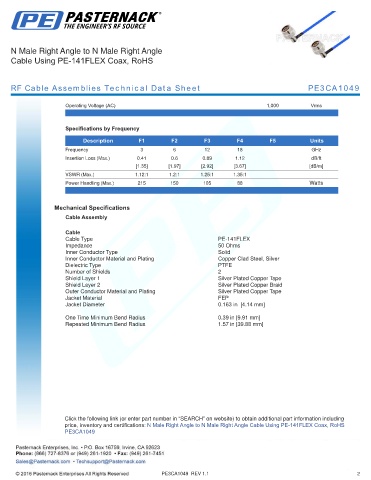

N Male Right Angle to N Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1049

Operating Voltage (AC) 1,000 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 6 12 18 GHz
Insertion Loss (Max.) 0.41 0.6 0.89 1.12 dB/ft
[1.35] [1.97] [2.92] [3.67] [dB/m]
VSWR (Max.) 1.12:1 1.2:1 1.25:1 1.35:1
Power Handling (Max.) 215 150 105 88 Watts
.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-141FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Outer Conductor Material and Plating Silver Plated Copper Tape
Jacket Material FEP
Jacket Diameter 0.163 in [4.14 mm]
.
One Time Minimum Bend Radius 0.39 in [9.91 mm]
Repeated Minimum Bend Radius 1.57 in [39.88 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1049
