Page 2857 - BNC to N RF Cable Assembly Datasheets

N Male Right Angle to N Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

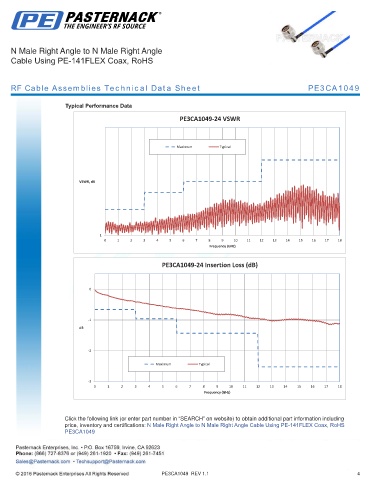

RF Cable Assemblies Technical Data Sheet PE3CA1049

Typical Performance Data

PE3CA1049-24 VSWR

Maximum Typical

VSWR, dB

1
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Frequency (GHz)

PE3CA1049-24 Insertion Loss (dB)

0

-1
dB

-2
Maximum Typical

-3
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1049
