N Male Right Angle to N Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

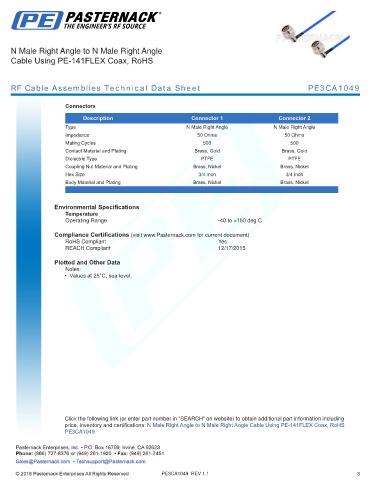

RF Cable Assemblies Technical Data Sheet PE3CA1049
Connectors
Description Connector 1 Connector 2
Type N Male Right Angle N Male Right Angle
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Brass, Nickel Brass, Nickel
Hex Size 3/4 Inch 3/4 Inch
Body Material and Plating Brass, Nickel Brass, Nickel
.
Environmental Specifications
Temperature
Operating Range -40 to +150 deg C
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
REACH Compliant 12/17/2015
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle to N Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1049
PE3CA1049 REV 1.1 3
