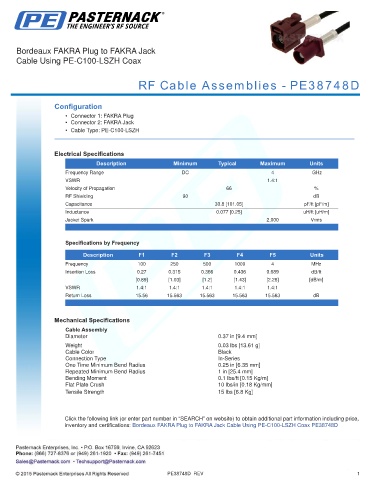

Bordeaux FAKRA Plug to FAKRA Jack
Cable Using PE-C100-LSZH Coax

RF Cable Assemblies - PE38748D

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Jack
• Cable Type: PE-C100-LSZH
.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Velocity of Propagation 66 %
RF Shielding 90 dB
Capacitance 30.8 [101.05] pF/ft [pF/m]
Inductance 0.077 [0.25] uH/ft [uH/m]
Jacket Spark 2,000 Vrms
.

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 100 250 500 1000 4 MHz
Insertion Loss 0.27 0.315 0.366 0.436 0.689 dB/ft
[0.89] [1.03] [1.2] [1.43] [2.26] [dB/m]
VSWR 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Weight 0.03 lbs [13.61 g]
Cable Color Black
Connection Type In-Series
One Time Minimum Bend Radius 0.25 in [6.35 mm]
Repeated Minimum Bend Radius 1 in [25.4 mm]
Bending Moment 0.1 lbs/ft [0.15 Kg/m]
Flat Plate Crush 10 lbs/in [0.18 Kg/mm]
Tensile Strength 15 lbs [6.8 Kg]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bordeaux FAKRA Plug to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38748D

PE38748D REV 1
