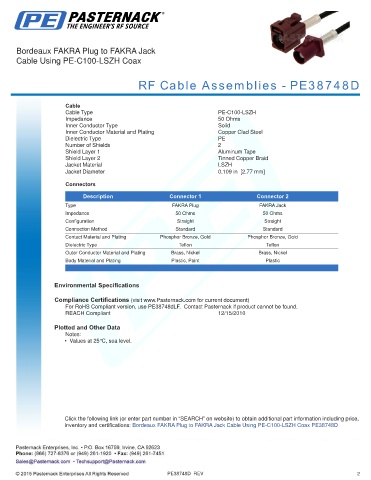

Bordeaux FAKRA Plug to FAKRA Jack
Cable Using PE-C100-LSZH Coax
RF Cable Assemblies - PE38748D
Cable
Cable Type PE-C100-LSZH
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE
Number of Shields 2
Shield Layer 1 Aluminum Tape
Shield Layer 2 Tinned Copper Braid
Jacket Material LSZH
Jacket Diameter 0.109 in [2.77 mm]
Connectors
Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Jack
Impedance 50 Ohms 50 Ohms
Configuration Straight Straight
Connection Method Standard Standard
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic, Paint Plastic
.
Environmental Specifications
Compliance Certifications (visit www.Pasternack.com for current document)
For RoHS Compliant version, use PE38748dLF. Contact Pasternack if product cannot be found.
REACH Compliant 12/15/2010
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bordeaux FAKRA Plug to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38748D
PE38748D REV 2
