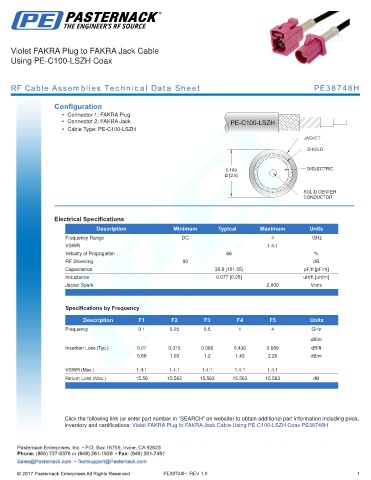

Violet FAKRA Plug to FAKRA Jack Cable
Using PE-C100-LSZH Coax

RF Cable Assemblies Technical Data Sheet PE38748H

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Jack
• Cable Type: PE-C100-LSZH

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.4:1
Velocity of Propagation 66 %
RF Shielding 90 dB
Capacitance 30.8 [101.05] pF/ft [pF/m]
Inductance 0.077 [0.25] uH/ft [uH/m]
Jacket Spark 2,000 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 4 GHz
dB/m
Insertion Loss (Typ.) 0.27 0.315 0.366 0.436 0.689 dB/ft
0.89 1.03 1.2 1.43 2.26 dB/m

VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Cable Using PE-C100-LSZH Coax PE38748H

PE38748H REV 1.0 1
