Violet FAKRA Plug to FAKRA Jack Right Angle
Cable Using RG316 Coax

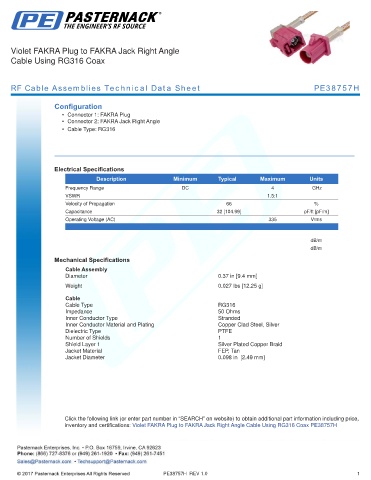

RF Cable Assemblies Technical Data Sheet PE38757H

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Jack Right Angle
• Cable Type: RG316

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 4 GHz
VSWR 1.5:1
Velocity of Propagation 66 %
Capacitance 32 [104.99] pF/ft [pF/m]
Operating Voltage (AC) 335 Vrms
.

dB/m
dB/m

Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Weight 0.027 lbs [12.25 g]

Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Right Angle Cable Using RG316 Coax PE38757H

PE38757H REV 1.0 1
