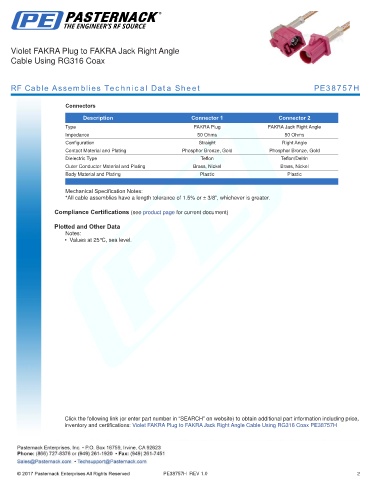

Violet FAKRA Plug to FAKRA Jack Right Angle
Cable Using RG316 Coax
RF Cable Assemblies Technical Data Sheet PE38757H
Connectors
Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Jack Right Angle
Impedance 50 Ohms 50 Ohms
Configuration Straight Right Angle
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon/Delrin
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic Plastic
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Jack Right Angle Cable Using RG316 Coax PE38757H
