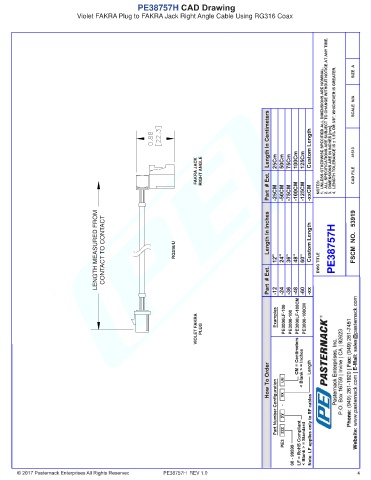

PE38757H CAD Drawing
                          Violet FAKRA Plug to FAKRA Jack Right Angle Cable Using RG316 Coax


























                                                                                                                      41613
                                                                  FAKRA JACK   RIGHT ANGLE









                                 LENGTH MEASURED FROM  CONTACT TO CONTACT  RG316/U                             PE38757H



















                                                                  VIOLET FAKRA   PLUG































                                                       PE38757H  REV 1.0                                               4
