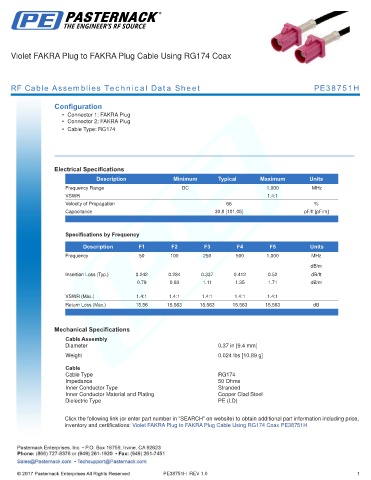

Violet FAKRA Plug to FAKRA Plug Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE38751H

Configuration
• Connector 1: FAKRA Plug
• Connector 2: FAKRA Plug
• Cable Type: RG174

.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 30.8 [101.05] pF/ft [pF/m]
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 50 100 250 500 1,000 MHz
dB/m
Insertion Loss (Typ.) 0.242 0.284 0.337 0.412 0.52 dB/ft
0.79 0.93 1.11 1.35 1.71 dB/m
VSWR (Max.) 1.4:1 1.4:1 1.4:1 1.4:1 1.4:1
Return Loss (Max.) 15.56 15.563 15.563 15.563 15.563 dB
.

Mechanical Specifications
Cable Assembly
Diameter 0.37 in [9.4 mm]
.
Weight 0.024 lbs [10.89 g]
Cable
Cable Type RG174
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel
Dielectric Type PE (LD)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Plug Cable Using RG174 Coax PE38751H

PE38751H REV 1.0 1
