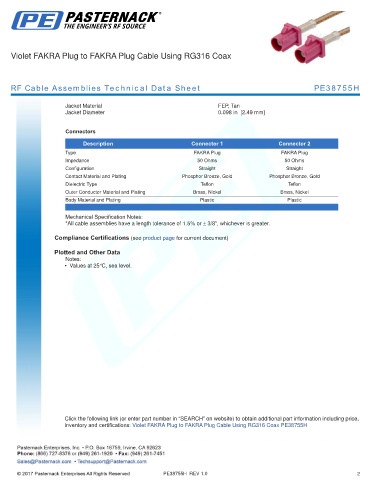

Violet FAKRA Plug to FAKRA Plug Cable Using RG316 Coax

RF Cable Assemblies Technical Data Sheet PE38755H

Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.
Connectors

Description Connector 1 Connector 2
Type FAKRA Plug FAKRA Plug
Impedance 50 Ohms 50 Ohms
Configuration Straight Straight
Contact Material and Plating Phosphor Bronze, Gold Phosphor Bronze, Gold
Dielectric Type Teflon Teflon
Outer Conductor Material and Plating Brass, Nickel Brass, Nickel
Body Material and Plating Plastic Plastic
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Violet FAKRA Plug to FAKRA Plug Cable Using RG316 Coax PE38755H
