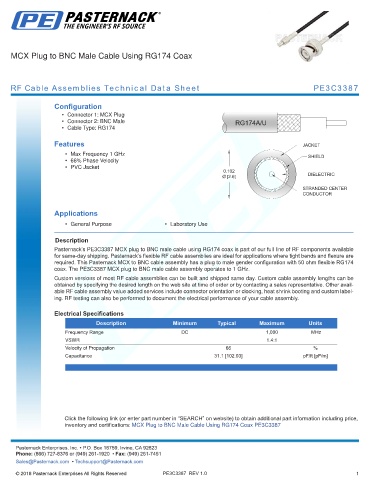

MCX Plug to BNC Male Cable Using RG174 Coax

RF Cable Assemblies Technical Data Sheet PE3C3387

Configuration
• Connector 1: MCX Plug
• Connector 2: BNC Male
• Cable Type: RG174

Features
• Max Frequency 1 GHz
• 66% Phase Velocity
• PVC Jacket

Applications

• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C3387 MCX plug to BNC male cable using RG174 coax is part of our full line of RF components available
for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight bends and flexure are
required. This Pasternack MCX to BNC cable assembly has a plug to male gender configuration with 50 ohm flexible RG174
coax. The PE3C3387 MCX plug to BNC male cable assembly operates to 1 GHz.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.4:1
Velocity of Propagation 66 %
Capacitance 31.1 [102.03] pF/ft [pF/m]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug to BNC Male Cable Using RG174 Coax PE3C3387
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C3387 REV 1.0 1
