MCX Plug to BNC Male Cable Using RG174 Coax

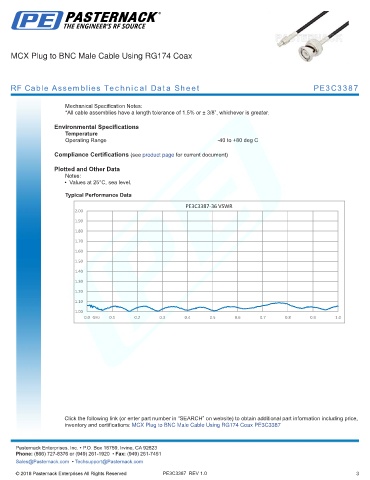

RF Cable Assemblies Technical Data Sheet PE3C3387

Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -40 to +80 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.
Typical Performance Data

PE3C3387-36 VSWR
2.00
1.90
1.80
1.70
1.60
1.50
1.40
1.30

1.20
1.10
1.00
0.0 GHz 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug to BNC Male Cable Using RG174 Coax PE3C3387
-
