Snap-On MMBX Plug to Snap-On MMBX
Plug Cable Using RG178 Coax

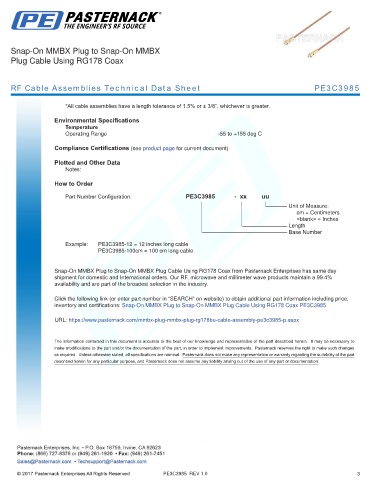

RF Cable Assemblies Technical Data Sheet PE3C3985

*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

How to Order

Part Number Configuration: PE3C3985 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number

Example: PE3C3985-12 = 12 inches long cable
PE3C3985-100cm = 100 cm long cable

Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG178 Coax from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG178 Coax PE3C3985

URL: https://www.pasternack.com/mmbx-plug-mmbx-plug-rg178bu-cable-assembly-pe3c3985-p.aspx

PE3C3985 REV 1.0 3
