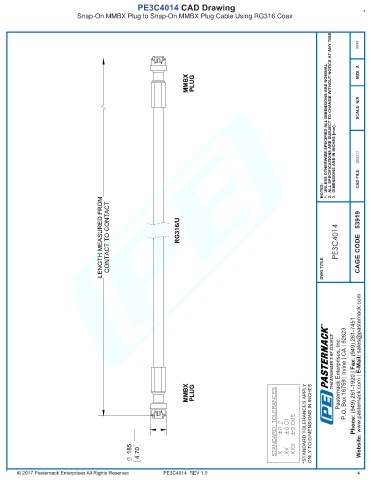

PE3C4014 CAD Drawing
Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG316 Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
9999

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SIZE A
MMBX PLUG

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052217

NOTES: CAD FILE
LENGTH MEASURED FROM CONTACT TO CONTACT RG316/U DWG TITLE PE3C4014 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

MMBX PLUG
STANDARD TOLERANCES .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.185 4.70 .X ±0.2 .XX ±0.01

PE3C4014 REV 1.0 4
