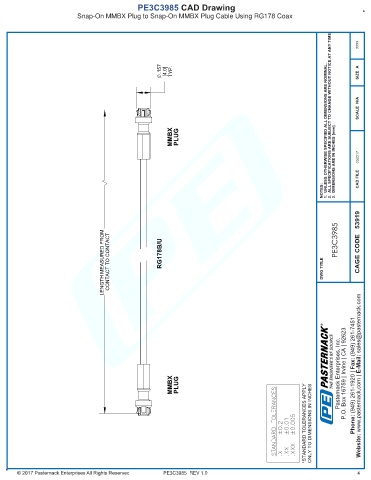

PE3C3985 CAD Drawing
Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG178 Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
9999

.157 [4.0] TYP. SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052217
MMBX PLUG 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT RG178B/U DWG TITLE PE3C3985 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE

MMBX PLUG Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES .X ±0.2 .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

PE3C3985 REV 1.0 4
