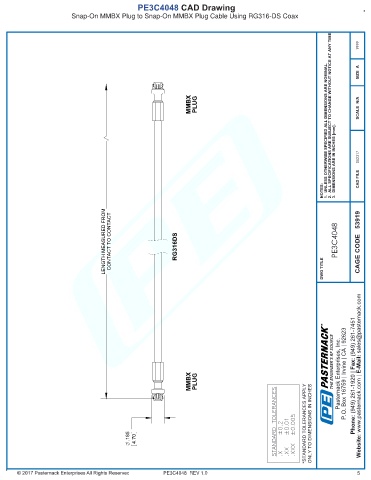

PE3C4048 CAD Drawing
Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG316-DS Coax

9999

SIZE A

MMBX PLUG 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052317

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT RG316DS DWG TITLE PE3C4048 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE

MMBX PLUG Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.185 4.70 .X ±0.2 .XX ±0.01 .XXX ±0.005

PE3C4048 REV 1.0 5
