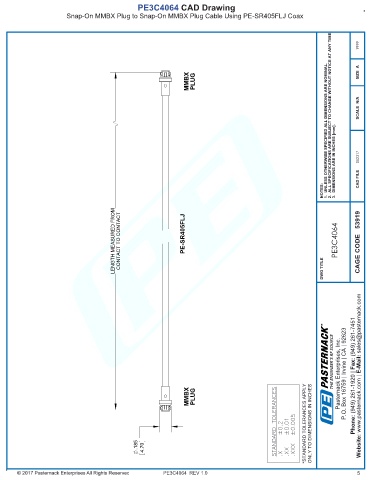

PE3C4064 CAD Drawing
Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using PE-SR405FLJ Coax

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
9999

1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
MMBX PLUG SIZE A

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 052317

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO CONTACT PE-SR405FLJ DWG TITLE PE3C4064 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
MMBX PLUG

.185 4.70 .X ±0.2 .XX ±0.01 .XXX ±0.005

PE3C4064 REV 1.0 5
