Snap-On MMBX Plug to Snap-On MMBX Plug
Cable Using PE-SR405FLJ Coax

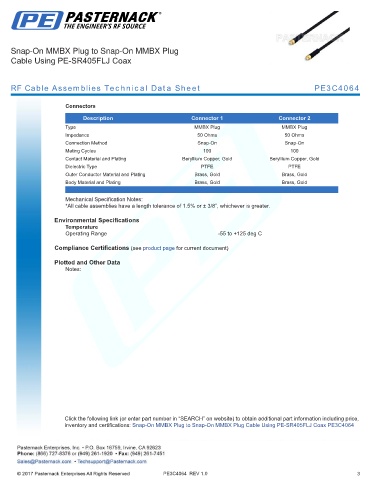

RF Cable Assemblies Technical Data Sheet PE3C4064
Connectors
Description Connector 1 Connector 2
Type MMBX Plug MMBX Plug
Impedance 50 Ohms 50 Ohms
Connection Method Snap-On Snap-On
Mating Cycles 100 100
Contact Material and Plating Beryllium Copper, Gold Beryllium Copper, Gold
Dielectric Type PTFE PTFE
Outer Conductor Material and Plating Brass, Gold Brass, Gold
Body Material and Plating Brass, Gold Brass, Gold
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using PE-SR405FLJ Coax PE3C4064
