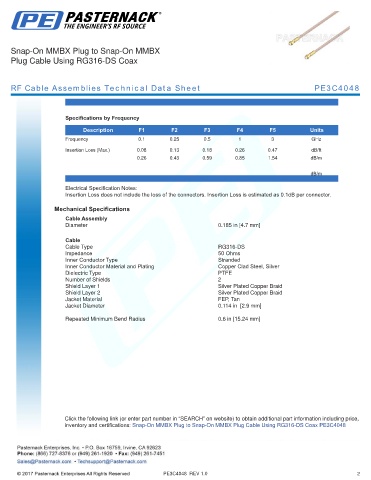

Snap-On MMBX Plug to Snap-On MMBX
Plug Cable Using RG316-DS Coax

RF Cable Assemblies Technical Data Sheet PE3C4048

.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Max.) 0.08 0.13 0.18 0.26 0.47 dB/ft
0.26 0.43 0.59 0.85 1.54 dB/m

dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.185 in [4.7 mm]
.
Cable
Cable Type RG316-DS
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Braid
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.114 in [2.9 mm]
.
Repeated Minimum Bend Radius 0.6 in [15.24 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to Snap-On MMBX Plug Cable Using RG316-DS Coax PE3C4048

PE3C4048 REV 1.0 2
