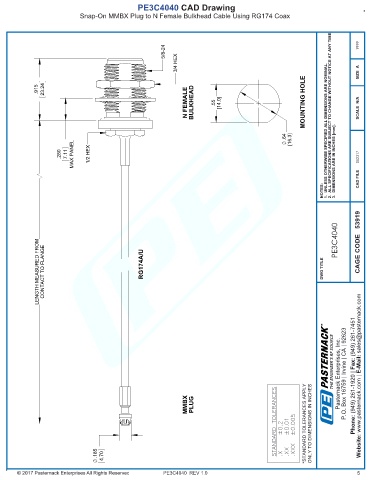

PE3C4040 CAD Drawing
Snap-On MMBX Plug to N Female Bulkhead Cable Using RG174 Coax
5/8-24 9999
3/4 HEX
SIZE A
.915 23.24
N FEMALE BULKHEAD .55 [14.0] MOUNTING HOLE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A
.64 [16.3] 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
MAX PANEL 1/2 HEX 3. DIMENSIONS ARE IN INCHES [mm]. 052317
.280 7.11
NOTES: CAD FILE
LENGTH MEASURED FROM CONTACT TO FLANGE RG174A/U DWG TITLE PE3C4040 CAGE CODE 53919
R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .XX ±0.01 .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES
MMBX PLUG
.185 4.70 .X ±0.2
PE3C4040 REV 1.0 5
