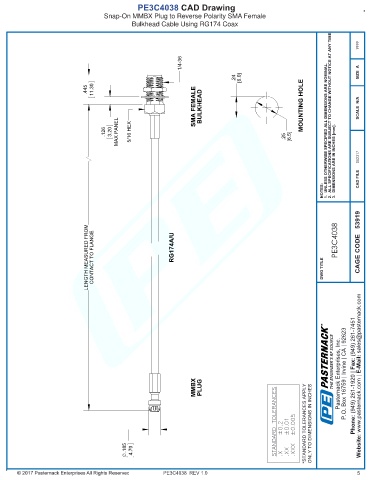

PE3C4038 CAD Drawing
Snap-On MMBX Plug to Reverse Polarity SMA Female
Bulkhead Cable Using RG174 Coax

9999

1/4-36

.24 [6.0] SIZE A

.445 11.30
SMA FEMALE BULKHEAD MOUNTING HOLE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

.126 3.20 MAX PANEL 5/16 HEX .25 [6.5] 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 052317

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO FLANGE RG174A/U DWG TITLE PE3C4038 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623

MMBX PLUG Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.185 4.70 .X ±0.2 .XX ±0.01 .XXX ±0.005

PE3C4038 REV 1.0 5
