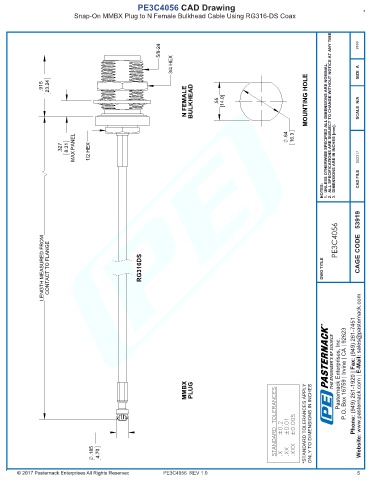

PE3C4056 CAD Drawing
Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316-DS Coax

5/8-24 9999
3/4 HEX

SIZE A
.915 23.24
N FEMALE BULKHEAD .55 [14.0] MOUNTING HOLE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

.327 8.31 MAX PANEL 1/2 HEX .64 16.3 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 052317

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO FLANGE RG316DS DWG TITLE PE3C4056 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623 Phone: (949) 261-1920 | Fax: (949) 261-7451

MMBX PLUG Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES .XXX ±0.005 *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.185 4.70 .X ±0.2 .XX ±0.01

PE3C4056 REV 1.0 5
