Snap-On MMBX Plug to N Female Bulkhead
Cable Using RG316-DS Coax

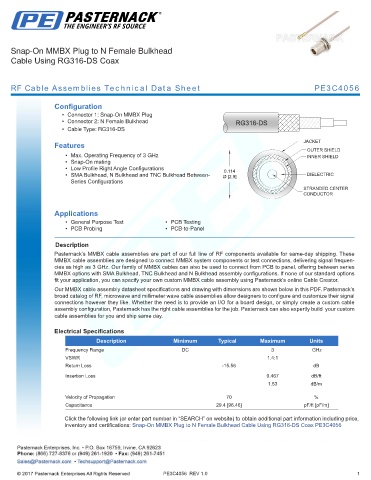

RF Cable Assemblies Technical Data Sheet PE3C4056

Configuration
• Connector 1: Snap-On MMBX Plug
• Connector 2: N Female Bulkhead
• Cable Type: RG316-DS

Features
• Max. Operating Frequency of 3 GHz
• Snap-On mating
• Low Profile Right Angle Configurations
• SMA Bulkhead, N Bulkhead and TNC Bulkhead Between-
Series Configurations

Applications
• General Purpose Test • PCB Testing
• PCB Probing • PCB-to-Panel
.
Description
Pasternack’s MMBX cable assemblies are part of our full line of RF components available for same-day shipping. These
MMBX cable assemblies are designed to connect MMBX system components or test connections, delivering signal frequen-
cies as high as 3 GHz. Our family of MMBX cables can also be used to connect from PCB to panel, offering between series
MMBX options with SMA Bulkhead, TNC Bulkhead and N Bulkhead assembly configurations. If none of our standard options
fit your application, you can specify your own custom MMBX cable assembly using Pasternack’s online Cable Creator.
Our MMBX cable assembly datasheet specifications and drawing with dimensions are shown below in this PDF. Pasternack’s
broad catalog of RF, microwave and millimeter wave cable assemblies allow designers to configure and customize their signal
connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom cable
assembly configuration, Pasternack has the right cable assemblies for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.4:1
Return Loss -15.56 dB
Insertion Loss 0.467 dB/ft
1.53 dB/m

Velocity of Propagation 70 %
Capacitance 29.4 [96.46] pF/ft [pF/m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316-DS Coax PE3C4056

PE3C4056 REV 1.0 1
