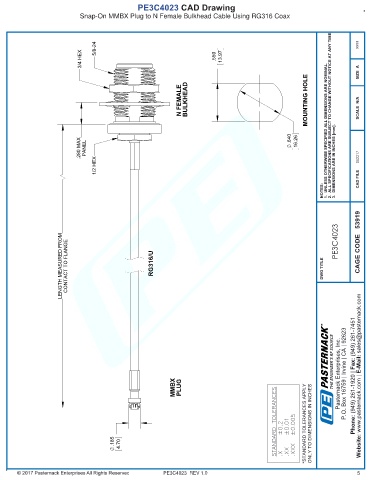

PE3C4023 CAD Drawing
Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax

5/8-24 9999
3/4 HEX .550 13.97 SIZE A

N FEMALE BULKHEAD MOUNTING HOLE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

.280 MAX PANEL .640 16.26 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

1/2 HEX 3. DIMENSIONS ARE IN INCHES [mm]. 052217

NOTES: CAD FILE

LENGTH MEASURED FROM CONTACT TO FLANGE RG316/U DWG TITLE PE3C4023 CAGE CODE 53919

R
THE ENGINEER'S RF SOURCE Pasternack Enterprises, Inc. P.O. Box 16759 | Irvine | CA | 92623

MMBX PLUG Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com
STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES

.185 4.70 .X ±0.2 .XX ±0.01 .XXX ±0.005

PE3C4023 REV 1.0 5
