Snap-On MMBX Plug to N Female Bulkhead
Cable Using RG316 Coax

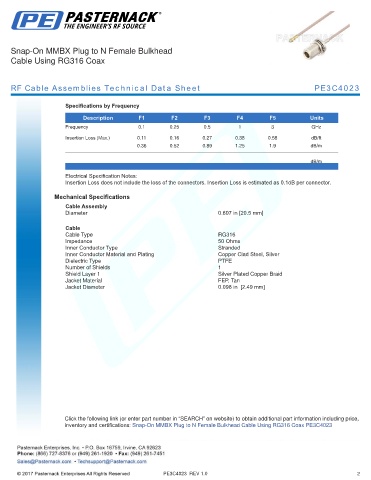

RF Cable Assemblies Technical Data Sheet PE3C4023

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 0.1 0.25 0.5 1 3 GHz
Insertion Loss (Max.) 0.11 0.16 0.27 0.38 0.58 dB/ft
0.36 0.52 0.89 1.25 1.9 dB/m

dB/m
.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.1dB per connector.

Mechanical Specifications
Cable Assembly
Diameter 0.807 in [20.5 mm]
.
Cable
Cable Type RG316
Impedance 50 Ohms
Inner Conductor Type Stranded
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Silver Plated Copper Braid
Jacket Material FEP, Tan
Jacket Diameter 0.098 in [2.49 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Snap-On MMBX Plug to N Female Bulkhead Cable Using RG316 Coax PE3C4023

PE3C4023 REV 1.0 2
