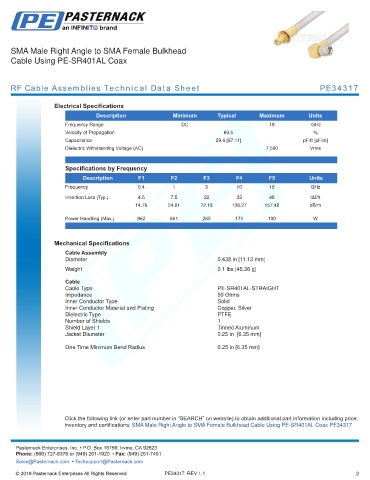

SMA Male Right Angle to SMA Female Bulkhead
Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE34317

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
Velocity of Propagation 69.5 %
Capacitance 29.6 [97.11] pF/ft [pF/m]
Dielectric Withstanding Voltage (AC) 7,500 Vrms
.
Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 0.4 1 5 10 18 GHz
Insertion Loss (Typ.) 4.5 7.5 22 33 48 dB/ft
14.76 24.61 72.18 108.27 157.48 dB/m
Power Handling (Max.) 962 661 265 174 100 W
.

Mechanical Specifications
Cable Assembly
Diameter 0.438 in [11.13 mm]
.
Weight 0.1 lbs [45.36 g]
Cable
Cable Type PE-SR401AL-STRAIGHT
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper, Silver
Dielectric Type PTFE
Number of Shields 1
Shield Layer 1 Tinned Aluminum
Jacket Diameter 0.25 in [6.35 mm]
.
One Time Minimum Bend Radius 0.25 in [6.35 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Cable Using PE-SR401AL Coax PE34317
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34317 REV 1.1 2
