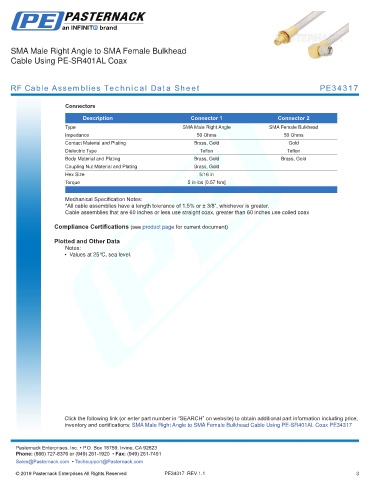

SMA Male Right Angle to SMA Female Bulkhead
Cable Using PE-SR401AL Coax

RF Cable Assemblies Technical Data Sheet PE34317

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Female Bulkhead
Impedance 50 Ohms 50 Ohms
Contact Material and Plating Brass, Gold Gold
Dielectric Type Teflon Teflon
Body Material and Plating Brass, Gold Brass, Gold
Coupling Nut Material and Plating Brass, Gold
Hex Size 5/16 in
Torque 5 in-lbs [0.57 Nm]
.
Mechanical Specification Notes:
*All cable assemblies have a length tolerance of 1.5% or ± 3/8”, whichever is greater.
Cable assemblies that are 60 inches or less use straight coax, greater than 60 inches use coiled coax

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Female Bulkhead Cable Using PE-SR401AL Coax PE34317
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE34317 REV 1.1 3
