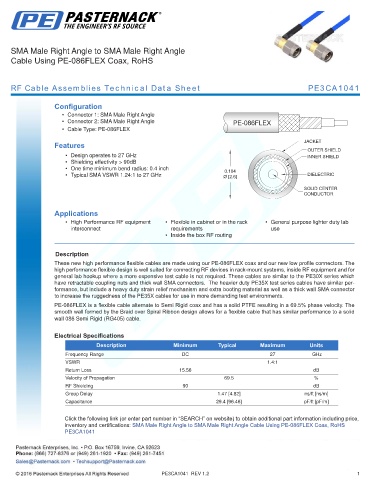

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-086FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1041

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Male Right Angle
• Cable Type: PE-086FLEX

Features
• Design operates to 27 GHz
• Shielding effectivity > 90dB
• One time minimum bend radius: 0.4 inch
• Typical SMA VSWR 1.24:1 to 27 GHz

Applications
• High Performance RF equipment • Flexible in cabinet or in the rack • General purpose lighter duty lab
interconnect requirements use
• Inside the box RF routing
.
Description
These new high performance flexible cables are made using our PE-086FLEX coax and our new low profile connectors. The
high performance flexible design is well suited for connecting RF devices in rack-mount systems, inside RF equipment and for
general lab hookup where a more expensive test cable is not required. These cables are similar to the PE30X series which
have retractable coupling nuts and thick wall SMA connectors. The heavier duty PE35X test series cables have similar per-
formance, but include a heavy duty strain relief mechanism and extra booting material as well as a thick wall SMA connector
to increase the ruggedness of the PE35X cables for use in more demanding test environments.
PE-086FLEX is a flexible cable alternate to Semi Rigid coax and has a solid PTFE resulting in a 69.5% phase velocity. The
smooth wall formed by the Braid over Spiral Ribbon design allows for a flexible cable that has similar performance to a solid
wall 086 Semi Rigid (RG405) cable.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 27 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Velocity of Propagation 69.5 %
RF Shielding 90 dB
Group Delay 1.47 [4.82] ns/ft [ns/m]
Capacitance 29.4 [96.46] pF/ft [pF/m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1041

PE3CA1041 REV 1.2 1
