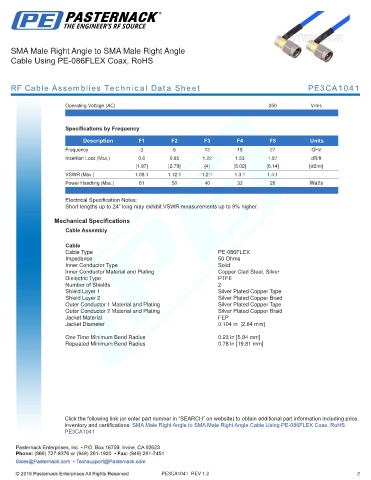

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-086FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1041

Operating Voltage (AC) 250 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 6 12 18 27 GHz
Insertion Loss (Max.) 0.6 0.85 1.22 1.53 1.87 dB/ft
[1.97] [2.79] [4] [5.02] [6.14] [dB/m]
VSWR (Max.) 1.08:1 1.12:1 1.2:1 1.3:1 1.4:1
Power Handling (Max.) 81 50 40 33 26 Watts
.
Electrical Specification Notes:
Short lengths up to 24” long may exhibit VSWR measurements up to 9% higher.

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-086FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Outer Conductor 1 Material and Plating Silver Plated Copper Tape
Outer Conductor 2 Material and Plating Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.104 in [2.64 mm]
.
One Time Minimum Bend Radius 0.23 in [5.84 mm]
Repeated Minimum Bend Radius 0.78 in [19.81 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1041
