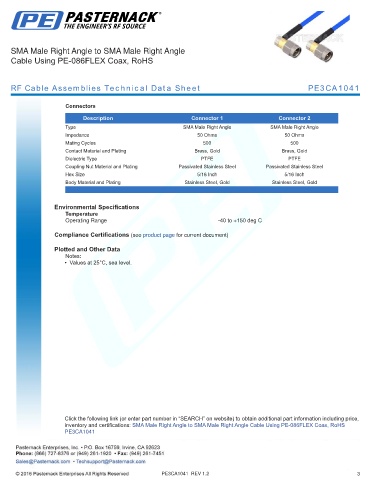

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-086FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1041

Connectors

Description Connector 1 Connector 2
Type SMA Male Right Angle SMA Male Right Angle
Impedance 50 Ohms 50 Ohms
Mating Cycles 500 500
Contact Material and Plating Brass, Gold Brass, Gold
Dielectric Type PTFE PTFE
Coupling Nut Material and Plating Passivated Stainless Steel Passivated Stainless Steel
Hex Size 5/16 Inch 5/16 Inch
Body Material and Plating Stainless Steel, Gold Stainless Steel, Gold
.

Environmental Specifications
Temperature
Operating Range -40 to +150 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:
• Values at 25°C, sea level.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-086FLEX Coax, RoHS
PE3CA1041
