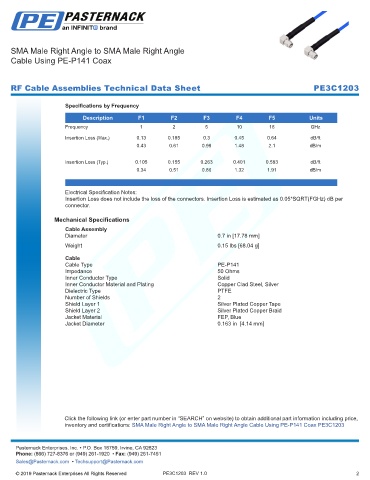

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-P141 Coax

RF Cable Assemblies Technical Data Sheet PE3C1203

Specifications by Frequency

Description F1 F2 F3 F4 F5 Units
Frequency 1 2 5 10 18 GHz
Insertion Loss (Max.) 0.13 0.185 0.3 0.45 0.64 dB/ft
0.43 0.61 0.98 1.48 2.1 dB/m

Insertion Loss (Typ.) 0.105 0.155 0.263 0.401 0.583 dB/ft
0.34 0.51 0.86 1.32 1.91 dB/m

.
Electrical Specification Notes:
Insertion Loss does not include the loss of the connectors. Insertion Loss is estimated as 0.05*SQRT(FGHz) dB per
connector.
Mechanical Specifications
Cable Assembly
Diameter 0.7 in [17.78 mm]
.
Weight 0.15 lbs [68.04 g]
Cable
Cable Type PE-P141
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP, Blue
Jacket Diameter 0.163 in [4.14 mm]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-P141 Coax PE3C1203
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C1203 REV 1.0 2
