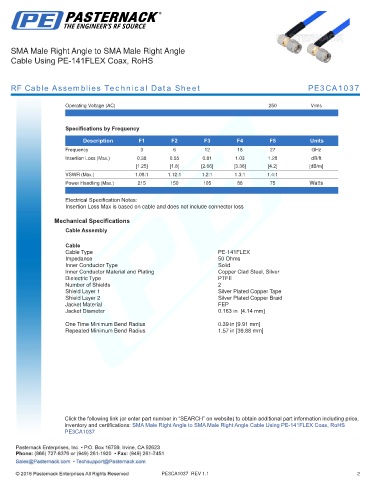

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

RF Cable Assemblies Technical Data Sheet PE3CA1037

Operating Voltage (AC) 250 Vrms
.

Specifications by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency 3 6 12 18 27 GHz
Insertion Loss (Max.) 0.38 0.55 0.81 1.03 1.28 dB/ft
[1.25] [1.8] [2.66] [3.38] [4.2] [dB/m]
VSWR (Max.) 1.08:1 1.12:1 1.2:1 1.3:1 1.4:1
Power Handling (Max.) 215 150 105 88 75 Watts
.
Electrical Specification Notes:
Insertion Loss Max is based on cable and does not include connector loss

Mechanical Specifications
Cable Assembly
.
Cable
Cable Type PE-141FLEX
Impedance 50 Ohms
Inner Conductor Type Solid
Inner Conductor Material and Plating Copper Clad Steel, Silver
Dielectric Type PTFE
Number of Shields 2
Shield Layer 1 Silver Plated Copper Tape
Shield Layer 2 Silver Plated Copper Braid
Jacket Material FEP
Jacket Diameter 0.163 in [4.14 mm]
.
One Time Minimum Bend Radius 0.39 in [9.91 mm]
Repeated Minimum Bend Radius 1.57 in [39.88 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1037

PE3CA1037 REV 1.1 2
