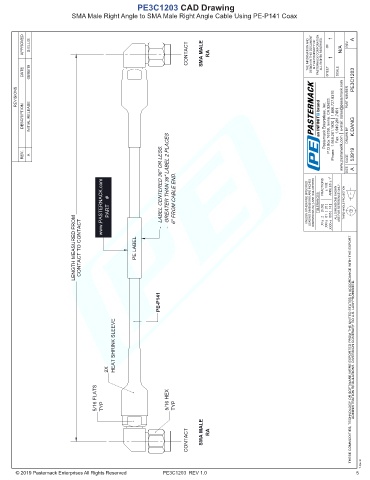

PE3C1203 CAD Drawing
SMA Male Right Angle to SMA Male Right Angle Cable Using PE-P141 Coax
1

APPROVED S.ELLIS CONTACT SMA MALE RA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 N/A REV A

DATE 08/05/19 SHEET OF SCALE PE3C1203

REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. A GREATER THAN 36" LABEL 2 PLACES CAGE SIZE 53919 A

www.PASTERNACK.com PART # LABEL CENTERED 36" OR LESS. - - 6" FROM CABLE END. UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] .X=± ± 1/32 .01 [ .25 ] .XX=± ANGLES ± 1° .005 [ .13 ] .XXX=± ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

LENGTH MEASURED FROM CONTACT TO CONTACT PE LABEL

PE-P141

HEAT SHRINK SLEEVE THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

2X

5/16 FLATS TYP 5/16 HEX TYP

SMA MALE
CONTACT
RA
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -

T-Rev.B
PE3C1203 REV 1.0 5
