SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-141FLEX Coax, RoHS

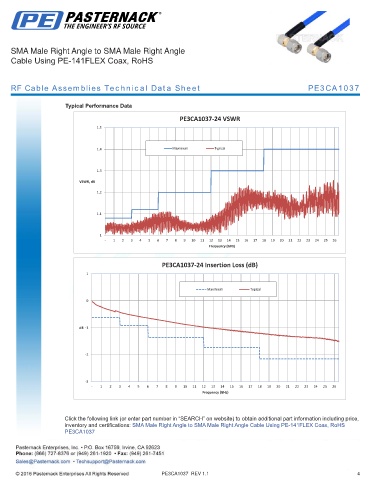

RF Cable Assemblies Technical Data Sheet PE3CA1037

Typical Performance Data

PE3CA1037-24 VSWR
1.5

1.4 Maximum Typical

1.3
VSWR, dB
1.2

1.1

1
- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Frequency (GHz)

PE3CA1037-24 Insertion Loss (dB)
1

Maximum Typical

0

dB -1

-2

-3
- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Frequency (GHz)

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-141FLEX Coax, RoHS
PE3CA1037

PE3CA1037 REV 1.1 4
