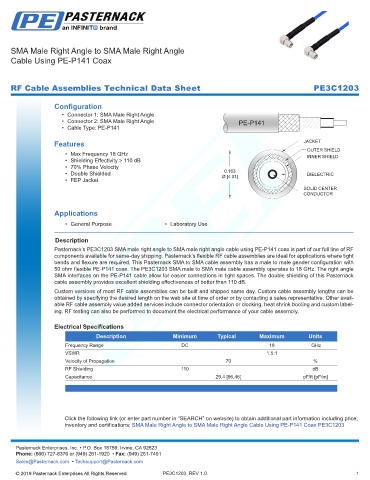

SMA Male Right Angle to SMA Male Right Angle
Cable Using PE-P141 Coax

RF Cable Assemblies Technical Data Sheet PE3C1203

Configuration
• Connector 1: SMA Male Right Angle
• Connector 2: SMA Male Right Angle
• Cable Type: PE-P141

Features
• Max Frequency 18 GHz
• Shielding Effectivity > 110 dB
• 70% Phase Velocity
• Double Shielded
• FEP Jacket

Applications
• General Purpose • Laboratory Use
.
Description
Pasternack’s PE3C1203 SMA male right angle to SMA male right angle cable using PE-P141 coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack SMA to SMA cable assembly has a male to male gender configuration with
50 ohm flexible PE-P141 coax. The PE3C1203 SMA male to SMA male cable assembly operates to 18 GHz. The right angle
SMA interfaces on the PE-P141 cable allow for easier connections in tight spaces. The double shielding of this Pasternack
cable assembly provides excellent shielding effectiveness of better than 110 dB.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 18 GHz
VSWR 1.5:1
Velocity of Propagation 70 %
RF Shielding 110 dB
Capacitance 29.4 [96.46] pF/ft [pF/m]

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: SMA Male Right Angle to SMA Male Right Angle Cable Using PE-P141 Coax PE3C1203
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE3C1203 REV 1.0 1
