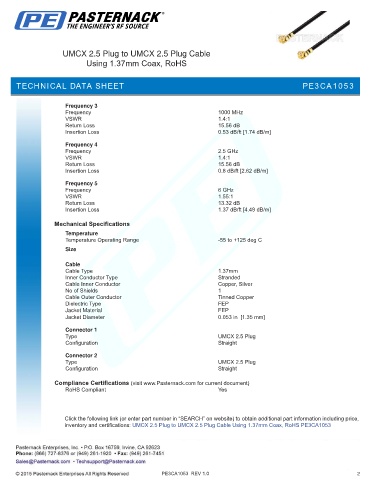

UMCX 2.5 Plug to UMCX 2.5 Plug Cable
Using 1.37mm Coax, RoHS

TECHNICAL D PE3CA1053
TECHNICAL DATA SHEETATA SHEET

Frequency 3
Frequency 1000 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.53 dB/ft [1.74 dB/m]

Frequency 4
Frequency 2.5 GHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.8 dB/ft [2.62 dB/m]

Frequency 5
Frequency 6 GHz
VSWR 1.55:1
Return Loss 13.32 dB
Insertion Loss 1.37 dB/ft [4.49 dB/m]

Mechanical Specifications
Temperature
Temperature Operating Range -55 to +125 deg C
Size
.
Cable
Cable Type 1.37mm
Inner Conductor Type Stranded
Cable Inner Conductor Copper, Silver
No of Shields 1
Cable Outer Conductor Tinned Copper
Dielectric Type FEP
Jacket Material FEP
Jacket Diameter 0.053 in [1.35 mm]
Connector 1
Type UMCX 2.5 Plug
Configuration Straight
Connector 2
Type UMCX 2.5 Plug
Configuration Straight

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS PE3CA1053

PE3CA1053 REV 1.0 2
