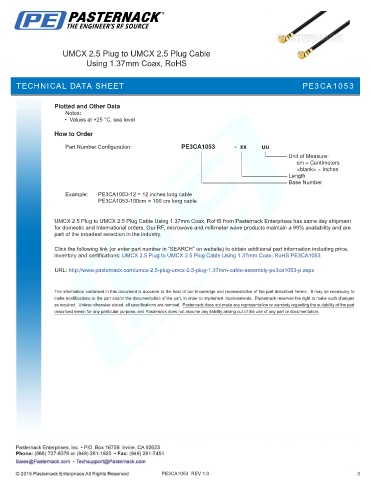

UMCX 2.5 Plug to UMCX 2.5 Plug Cable
Using 1.37mm Coax, RoHS

TECHNICAL D PE3CA1053
TECHNICAL DATA SHEETATA SHEET

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

How to Order

Part Number Configuration: PE3CA1053 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number
Example: PE3CA1053-12 = 12 inches long cable
PE3CA1053-100cm = 100 cm long cable

UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS from Pasternack Enterprises has same day shipment
for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are
part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS PE3CA1053

URL: http://www.pasternack.com/umcx-2.5-plug-umcx-2.5-plug-1.37mm-cable-assembly-pe3ca1053-p.aspx

PE3CA1053 REV 1.0 3
