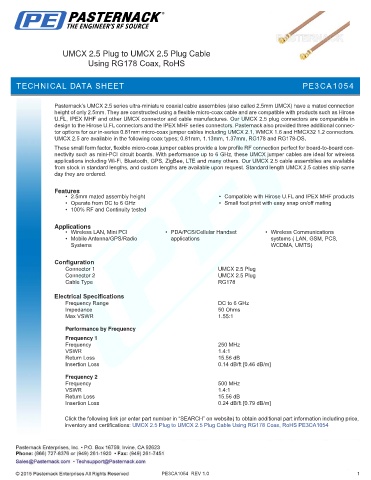

UMCX 2.5 Plug to UMCX 2.5 Plug Cable
Using RG178 Coax, RoHS

TECHNICAL D PE3CA1054
TECHNICAL DATA SHEETATA SHEET

Pasternack’s UMCX 2.5 series ultra-miniature coaxial cable assemblies (also called 2.5mm UMCX) have a mated connection
height of only 2.5mm. They are constructed using a flexible micro-coax cable and are compatible with products such as Hirose
U.FL, IPEX MHF and other UMCX connector and cable manufactures. Our UMCX 2.5 plug connectors are comparable in
design to the Hirose U.FL connectors and the IPEX MHF series connectors. Pasternack also provided three additional connec-
tor options for our in-series 0.81mm micro-coax jumper cables including UMCX 2.1, WMCX 1.6 and HMCX32 1.2 connectors.
UMCX 2.5 are available in the following coax types; 0.81mm, 1.13mm, 1.37mm, RG178 and RG178-DS.
These small form factor, flexible micro-coax jumper cables provide a low profile RF connection perfect for board-to-board con-
nectivity such as mini-PCI circuit boards. With performance up to 6 GHz, these UMCX jumper cables are ideal for wireless
applications including Wi-Fi, Bluetooth, GPS, ZigBee, LTE and many others. Our UMCX 2.5 cable assemblies are available
from stock in standard lengths, and custom lengths are available upon request. Standard length UMCX 2.5 cables ship same
day they are ordered.

Features
• 2.5mm mated assembly height • Compatible with Hirose U.FL and IPEX MHF products
• Operate from DC to 6 GHz • Small foot print with easy snap on/off mating
• 100% RF and Continuity tested

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems ( LAN, GSM, PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 UMCX 2.5 Plug
Connector 2 UMCX 2.5 Plug
Cable Type RG178

Electrical Specifications
Frequency Range DC to 6 GHz
Impedance 50 Ohms
Max VSWR 1.55:1

Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.14 dB/ft [0.46 dB/m]

Frequency 2
Frequency 500 MHz
VSWR 1.4:1
Return Loss 15.56 dB
Insertion Loss 0.24 dB/ft [0.79 dB/m]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using RG178 Coax, RoHS PE3CA1054

PE3CA1054 REV 1.0 1
