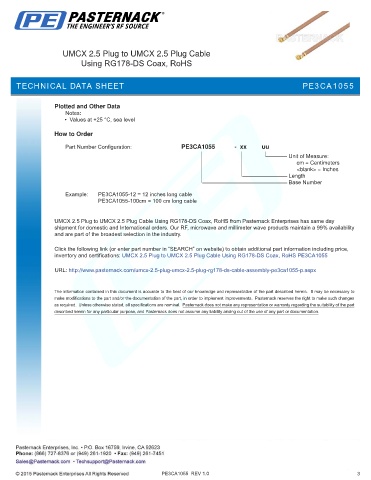

UMCX 2.5 Plug to UMCX 2.5 Plug Cable
Using RG178-DS Coax, RoHS

TECHNICAL D PE3CA1055
TECHNICAL DATA SHEETATA SHEET

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

How to Order

Part Number Configuration: PE3CA1055 - xx uu
| | | | | Unit of Measure:
| | cm = Centimeters
<blank> = Inches
| | Length
Base Number
Example: PE3CA1055-12 = 12 inches long cable
PE3CA1055-100cm = 100 cm long cable

UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using RG178-DS Coax, RoHS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX 2.5 Plug to UMCX 2.5 Plug Cable Using RG178-DS Coax, RoHS PE3CA1055

URL: http://www.pasternack.com/umcx-2.5-plug-umcx-2.5-plug-rg178-ds-cable-assembly-pe3ca1055-p.aspx

PE3CA1055 REV 1.0 3
