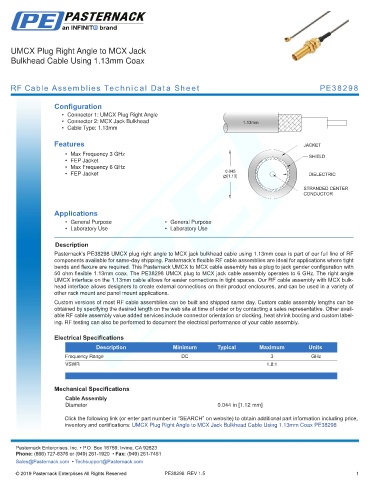

UMCX Plug Right Angle to MCX Jack
Bulkhead Cable Using 1.13mm Coax

RF Cable Assemblies Technical Data Sheet PE38298

Configuration
• Connector 1: UMCX Plug Right Angle
• Connector 2: MCX Jack Bulkhead 1.13mm
• Cable Type: 1.13mm

Features
• Max Frequency 3 GHz
• FEP Jacket
• Max Frequency 6 GHz
• FEP Jacket 0.045
[1.13]

Applications
• General Purpose • General Purpose
• Laboratory Use • Laboratory Use
.
Description
Pasternack’s PE38298 UMCX plug right angle to MCX jack bulkhead cable using 1.13mm coax is part of our full line of RF
components available for same-day shipping. Pasternack’s flexible RF cable assemblies are ideal for applications where tight
bends and flexure are required. This Pasternack UMCX to MCX cable assembly has a plug to jack gender configuration with
50 ohm flexible 1.13mm coax. The PE38298 UMCX plug to MCX jack cable assembly operates to 6 GHz. The right angle
UMCX interface on the 1.13mm cable allows for easier connections in tight spaces. Our RF cable assembly with MCX bulk-
head interface allows designers to create external connections on their product enclosures, and can be used in a variety of
other rack mount and panel mount applications.
Custom versions of most RF cable assemblies can be built and shipped same day. Custom cable assembly lengths can be
obtained by specifying the desired length on the web site at time of order or by contacting a sales representative. Other avail-
able RF cable assembly value added services include connector orientation or clocking, heat shrink booting and custom label-
ing. RF testing can also be performed to document the electrical performance of your cable assembly.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.8:1

.
Mechanical Specifications
Cable Assembly
Diameter 0.044 in [1.12 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: UMCX Plug Right Angle to MCX Jack Bulkhead Cable Using 1.13mm Coax PE38298
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE38298 REV 1.5 1
